STANDARD PALLET SCALE with BASIC DIGITAL READOUT

FLOOR SCALE & REMOTE WEIGHT DISPLAY COMBO

5,000 lb capacity x 1 lb increments.

4 ft x 4ft x 3” high platform.

Bright LED readout with wall-mount bracket.

Pushbutton keypad for zero, tare, gross/net, lb/kg, print.

RS-232C built-in for printer or computer communication.

Diamond tread top plate; 150% overload; NTEP certified.

Shipped to your door factory precalibrated - - easy setup.

2 year warranty parts and factory labor.

$ 1695.00 FOB factory (online orders only)

APPLICATIONS & FEATURES:

Choice of capacities from 1000 lb to 20,000 lb.

Light to Medium capacity weighing.

Pallet Weighing / Shipping Scale / Receiving Scale.

3.5" high with adjustable legs.

OPTIONS:

Semi or Full Stainless Steel Construction for Harsh Environments.

Stainless steel is available in Type 304 or Type 316 Grade.

Diamond-tread or Smooth Top Plate.

Swivel Self-Leveling Feet.

Top access J-Box and leveling for in-ground applications.

Approach Ramps, Bumper Guards, Guard Rails.

Custom Consoles for Process Control, Counting, Batching or In/Out Truck Weighing.

Pit Frames for in-ground use.

Customer specific modifications such as unusual platform sizes, special materials, paint or coatings.

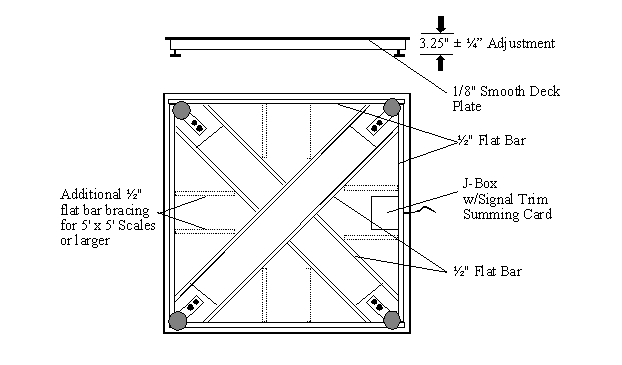

STRUCTURE:

Mild painted steel.
Safe Overload:     200%
Safe Side Load: 100%

WARRANTY:

2 Years Parts and In-Factory Labor.

REPLACEMENT LOAD CELLS:

Sensortronics 65023/65083, Revere 5123/9123, Transcell SBS, Celtron SQB, Tedea 3411, Artech 30310, Rice Lake-RL30000

Standard Floor Scale Specifications

MILD STEEL FLOOR SCALE PRICING:

Model
Platform Size
L x W x H
Capacity
lb

NTEP

Estimated Ship Wt. (lb)

Price

AL3030-1K
30" x 30" x 3"
1,000

No

110

$ 1,275.00

AL3030-2.5K
30" x 30" x 3"
2,500

No

110

$ 1,275.00

AL3636-1K
36" x 36" x 3"
1,000

No

160

$ 1,300.00

AL4848-2K
48" x 48" x 3"
2,000

No

260

$ 1,325.00

AL4848-5K
48" x 48" x 3"
5,000

Yes

260

$ 1,325.00

AL4848-10K
48" x 48" x 3"
10,000

Yes

345

$ 1,495.00

AL7248-5K
6' x 4' x 3"
5,000

Yes

435

$ 1,660.00

AL7248-10K
6' x 4' x 3"
10,000

Yes

554

$ 1,825.00

AL7248-20K
6' x 4' x 3"
20,000

Yes

660

$ 2,650.00

AL6060-5K
5' x 5' x 3"
5,000

Yes

448

$ 1,660.00

AL6060-10K
5' x 5' x 3"
10,000

Yes

583

$ 1,825.00

AL8460-20K
7' x 5' x 4"
20,000

Yes

1,290

$ 3,300.00

AL9672-20K
8' x 6' x 5"
20,000

Yes

1,765

$ 4,500.00

AL12096-20K
10' x 8' x 5"
20,000

No

2,915

$ 7,500.00

For other sizes or features not shown please call Algen Scale at 1-800-836-8445 or email your request to sales@algen.com.

MILD STEEL FLOOR SCALE RAMP PRICING:

Ramps: Standard with diamond deck tread plate

Size

Capacity (lb)

Est. Ship Wt. (lb)

Price

30" x 36" x 3"

2,500

95

$ 210.00

36" x 36" x 3"

5,000

125

$ 260.00

48" x 36" x 3"

5,000

170

$ 300.00

48" x 36" x 3"

10,000

210

$ 330.00

48" x 48" x 4"

20,000

250

$ 380.00

60" x 36" x 3"

5,000

210

$ 330.00

60" x 36" x 3"

10,000

260

$ 360.00

60" x 48" x 4"

20,000

350

$ 470.00

72" x 48" x 4"

20,000

450

$ 575.00

72" x 60" x 5"

20,000

485

$ 690.00

96" x 48" x 4"

20,000

650

$ 825.00

96" x 60" x 5"

20,000

747

$ 995.00

120" x 60" x 5"

20,000

936

$ 1,175.00

For other sizes or features not shown please call Algen Scale at 1-800-836-8445 or email your request to sales@algen.com.

Stainless Steel Floor Scale Specifications

STAINLESS STEEL FLOOR SCALE PRICING:
Stainless Steel Floor Scales built with smooth deck plates, SS Swivel Feet, Stainless Steel J-Box.

Model
Platform Size
L x W x H
Capacity
lb

NTEP

Estimated Ship Wt. (lb)

Price

ALS3030-1K
30" x 30" x 3"
1,000

No

125

$ 2,95000

ALS3030-2.5K
30" x 30" x 3"
2,500

No

125

$ 2,950.00

ALS3636-1K
36" x 36" x 3"
1,000

No

180

$ 3,200.00

ALS4848-2K
48" x 48" x 3"
2,000

No

250

$ 3,650.00

ALS4848-5K
48" x 48" x 3"
5,000

Yes

250

$ 3,650.00

ALS4848-10K
48" x 48" x 3"
10,000

Yes

375

$ 3,995.00

ALS6060-5K
5' x 5' x 3"
5,000

Yes

485

$ 4,995.00

ALS6060-10K
5' x 5' x 3"
10,000

Yes

600

$ 5,650.00

ALS8460-20K
7' x 5' x 4"
20,000

Yes

1,290

$ 3,300.00

For other sizes or features not shown please call Algen Scale at 1-800-836-8445 or email your request to sales@algen.com.

STAINLESS STEEL FLOOR SCALE RAMP PRICING:
Ramps: Standard with smooth deck tread plate (add 10% for diamond plate)

Size

Capacity (lb)

Est. Ship Wt. (lb)

Price

30" x 36" x 3"

2,500

94

$ 745.00

36" x 36" x 3"

5,000

119

$ 795.00

48" x 36" x 3"

10,000

195

$ 845.00

60" x 36" x 3"

10,000

320

$ 1,095.00

For other sizes or features not shown please call Algen Scale at 1-800-836-8445 or email your request to sales@algen.com.

FLOOR SCALE OPTIONS PRICING:

Upgrade Option

Description

Price

Swivel Level Feet

4 Carbon Steel Swivel Feet

$ 80.00

Swivel Level Feet SS

4 Stainless Steel Swivel Feet

$ 120.00

S.S. NEMA 4 J-Box

(Quantity 1)

$ 100.00

CAS CI-2001A

Weight Indicator, ABS, NTEP, RS-232

$ 395.00

CAS CI-2001AS

Weight Indicator, Stainless Steel, NTEP, RS-232

$ 595.00

Additional Options

Call 1-800-836-8445

Super Low Profile
Scale Platform

Stainless steel or Mild steel surface

NTEP Approved hermetically sealed load cells are washdown safe.

Optional Ramps

Capacities from 1,000 to 6,000 lb.

Platform sizes up to 4' x 6'.

Rugged construction perfect for harsh environments.

TL Series Low Profile Floor Scales:
Superior quality steel floor scales suitable for use in harsh environments. Smooth deck surface for easy cleaning. 1½" floor clearance and live side rails make handling difficult loads simple and error free. Includes NTEP approved hermetically sealed load cells and stainless steel junction box with 15 feet of 4 conductor cable. Ideal for weighing drums, barrels, handcarts and more. Short approach ramps save space and are safer to use.



Construction Material:
     Mild or stainless steel

Load Cell Output:
     2 mv/v Full Scale
Excitation:
     10 VDC / AC std. 20 VDC / AC max

Cable:
     4 conductor, 15 foot
Operating Temperature:
     +14° to 122°F (-10° to 50°C)
Available Options:
     Mild Steel Ramps
     Stainless Steel Ramps
     Mild Steel Column Indicator
     Stainless Steel Column Indicator
     Epoxy Bonded Paint Column
     Hold-Down Bracket

Model PW800
Get Greater Convenience and Efficiency with the Model PW800 Pallet Weigh Truck

Fast, low-cost parts counting for taking inventory.
Accuracy of ±0.1% which is better than most fork lift scales.
5,000 lb capacity in 1 lb increments (2500 x 0.5 kg)*
Low-cost operation.
Operates on standard "D" cell alkaline batteries or with rechargeable battery packs (charger included).
Quick verification of incoming/outgoing freight.
Instant check of truck loading by weight.
Multi-purpose mobile weighing.
Ideal for high volume traffic.
Large, easy to read .8" LED display.
Electric "Walkie" Retrofits available.
*Other capacities available:
1000 lb (500 kg); 2500 lb (1200 kg); up to 10,000 lb (4500 kg).

Now it's a breeze to check weights anywhere in your plant - - in transit - - without hauling loads to a platform scale. Enjoy instant weighing with an efficient and convenient mobile scale. Bring the scale to the load to save time and money.

Part No.	Description	Stock	Price
PW800-2748	Pallet Weigh Truck (27" x 48" forks)	2670	$ 3,245.00
PW800-2148	Pallet Weigh Truck (21" x 48" forks)	2671	$ 3,245.00
800-IO	RS232 Serial output	2672	$ 195.00
800-LCD	LC Display	2673	$ 95.00
800 BCDOMT	120VAC Battery Charger	2674	$ 255.00
800-BCINTT	220VAC Battery Charger	2675	$ 275.00
800-P-DP	Battery Operated Printer (tape)	2676	$ 695.00
800-G	Galvanized Pallet Truck (Price Adder)	2677	$ 1,495.00 add'l.
800-SS	Stainless Steel Pallet Truck (Price Adder)	2678	$ 3,495.00 add'l.

Ideal for drums, chlorine cylinders, hazardous medical waste and other containers
Capacities ranging from 300 to 2,000 lb/150 to 1,000 kg
All aluminum self contained unit provides accuracy of ±0.1%
Available in 15 x 15 or 24 x 24 inch/metric equivalent
Can interface with an optional printer or remote display
Accumulation and printout of multiple weights

CW250™
Portable Electronic Platform Scale

With its compact design, plus easy portability, the Intercomp Model CW250^TM Scale is ideal for weighing 55-gallon drums, chlorine cylinders, propane bottles, freon tanks, hazardous medical wastes and other liquid or gaseous containers. But those are just a few uses.

It's available in twelve high performance models with capacities ranging from 300 to 2,000 lb/150 to 1,000 kg. There are two sizes of weigh platforms:
15" x 15"x4"/380x3803100 mm, and 24"x24"x4"/610x610x100mm. This rugged, all aluminum, self-contained unit provides accuracy of ±0.1% (NTEP Class III) of applied load.

Fully battery operated, this Intercomp scale requires only infrequent recharging from any 12, 120 or 220 volt power source (charger adaptor and cable provided). For night use, you light up the display area by just touching the "lamp" switch. to record weights, the scale will interface with an optional printer or display (such as our P-DP printer or SA2000 display).

Options

Remote Indicator (Pedestal, floor or wall)
220V, 50Hz Charging Transformer
20mA Current Loop/RS232 Output
Ramp
Battery Operated Tape Printer
Transport Wheels

15" x 15" x 4" Platform

Part No.	Capacity	Weight	Stock	Price
CW250-300-1S	300 x 0.1 lb	38 lb	2237	$935.00
CW250-500-2S	500 x 0.2 lb	38 lb	2238	$935.00
CW250-1000-5S	1,000 x 0.5 lb	38 lb	2239	$935.00
CW250-2000-15	2,000 x 1 lb	38 lb	2240	$935.00
24" x 24" x 4" Platform
Part No.	Capacity	Weight	Stock	Price
CW250-300-1	300 x 0.1 lb	85 lb	2241	$1,100.00
CW250-500-2	500 x 0.2 lb	85 lb	2242	$1,100.00
CW250-1000-5	1,000 x 0.5 lb	85 lb	2243	$1,100.00
CW250-2000-5	2,000 x 1 lb	85 lb	2244	$1,100.00
Options
CW-INTT 220	VAC/50Hz charging transformer		2245	$95.00
CW-IO	20ma current loop output		2246	$75.00
CW-R	Ramp		2247	$195.00
P-DP	Battery operated Tape Printer		2248	$795.00
CW-TW	Transport Wheels (2 per)		2311	$95.00
CW-RIP	Remote Indicator (Pedestal)		2312	$245.00
CW-RI	Remote Indicator (Floor to Wall)		2313	$195.00

About Algen Catalog Contact Us Order
Rentals Search Software

Super Low Profile Scale Platform
Stainless steel or Mild steel surface NTEP Approved hermetically sealed load cells are washdown safe. Optional Ramps	*Capacities from 1,000 to 6,000 lb.* *Platform sizes up to 4' x 6'.* *Rugged construction perfect for harsh environments.*

TL Series Low Profile Floor Scales: Superior quality steel floor scales suitable for use in harsh environments. Smooth deck surface for easy cleaning. 1½" floor clearance and live side rails make handling difficult loads simple and error free. Includes NTEP approved hermetically sealed load cells and stainless steel junction box with 15 feet of 4 conductor cable. Ideal for weighing drums, barrels, handcarts and more. Short approach ramps save space and are safer to use.

Construction Material: Mild or stainless steel Load Cell Output: 2 mv/v Full Scale Excitation: 10 VDC / AC std. 20 VDC / AC max Cable: 4 conductor, 15 foot	Operating Temperature: +14° to 122°F (-10° to 50°C) Available Options: Mild Steel Ramps Stainless Steel Ramps Mild Steel Column Indicator Stainless Steel Column Indicator Epoxy Bonded Paint Column Hold-Down Bracket

Capacity
lb

Ramps: Standard with diamond deck tread plate

Capacity
lb

Price

Model	Platform Size L x W x H	Capacity lb	NTEP	Estimated Ship Wt. (lb)	Price
AL3030-1K	30" x 30" x 3"	1,000	No	110	$ 1,275.00
AL3030-2.5K	30" x 30" x 3"	2,500	No	110	$ 1,275.00
AL3636-1K	36" x 36" x 3"	1,000	No	160	$ 1,300.00
AL4848-2K	48" x 48" x 3"	2,000	No	260	$ 1,325.00
AL4848-5K	48" x 48" x 3"	5,000	Yes	260	$ 1,325.00
AL4848-10K	48" x 48" x 3"	10,000	Yes	345	$ 1,495.00
AL7248-5K	6' x 4' x 3"	5,000	Yes	435	$ 1,660.00
AL7248-10K	6' x 4' x 3"	10,000	Yes	554	$ 1,825.00
AL7248-20K	6' x 4' x 3"	20,000	Yes	660	$ 2,650.00
AL6060-5K	5' x 5' x 3"	5,000	Yes	448	$ 1,660.00
AL6060-10K	5' x 5' x 3"	10,000	Yes	583	$ 1,825.00
AL8460-20K	7' x 5' x 4"	20,000	Yes	1,290	$ 3,300.00
AL9672-20K	8' x 6' x 5"	20,000	Yes	1,765	$ 4,500.00
AL12096-20K	10' x 8' x 5"	20,000	No	2,915	$ 7,500.00

Size	Capacity (lb)	Est. Ship Wt. (lb)	Price
30" x 36" x 3"	2,500	95	$ 210.00
36" x 36" x 3"	5,000	125	$ 260.00
48" x 36" x 3"	5,000	170	$ 300.00
48" x 36" x 3"	10,000	210	$ 330.00
48" x 48" x 4"	20,000	250	$ 380.00
60" x 36" x 3"	5,000	210	$ 330.00
60" x 36" x 3"	10,000	260	$ 360.00
60" x 48" x 4"	20,000	350	$ 470.00
72" x 48" x 4"	20,000	450	$ 575.00
72" x 60" x 5"	20,000	485	$ 690.00
96" x 48" x 4"	20,000	650	$ 825.00
96" x 60" x 5"	20,000	747	$ 995.00
120" x 60" x 5"	20,000	936	$ 1,175.00

Upgrade Option	Description	Price
Swivel Level Feet	4 Carbon Steel Swivel Feet	$ 80.00
Swivel Level Feet SS	4 Stainless Steel Swivel Feet	$ 120.00
S.S. NEMA 4 J-Box	(Quantity 1)	$ 100.00
CAS CI-2001A	Weight Indicator, ABS, NTEP, RS-232	$ 395.00
CAS CI-2001AS	Weight Indicator, Stainless Steel, NTEP, RS-232	$ 595.00
Additional Options		Call 1-800-836-8445

Capacity lb

Ramps: Standard with diamond deck tread plate

Capacity lb

Price

Capacity
lb

Capacity
lb
