<Tubular Scale> |

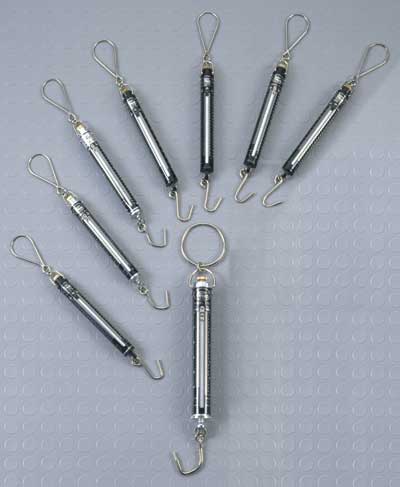

Tubular
Instrument Scales
Choice of ten sizes:
|
MODEL |
CAPACITY |
 |
|
T-1C |
3 oz x 1/16 oz |
100 g x 1 g |
|
T-2C |
6 oz x 1/8 oz |
200 g x 2 g |
|
T-5C |
16 oz x 1/4 oz |
500 g x 5 g |
|
T-2 |
2 lb x 1/2 oz |
1 kg x 10 g |
|
T-4 |
4 lb x 1 oz |
2 kg x 20 g |
|
T-10 |
10 lb x 2 oz |
5 kg x 50 g |
|
T-20 |
20 lb x 4 oz |
10 kg x 100 g |
|
T-50 |
50 lb x 8 oz |
25 kg x 250 g |
|
T-25 |
5 lbt x 1 ozt |
2 kg x 20 g |
|
T-125 |
25 lbt x 4 ozt |
10 kg x 100 g |

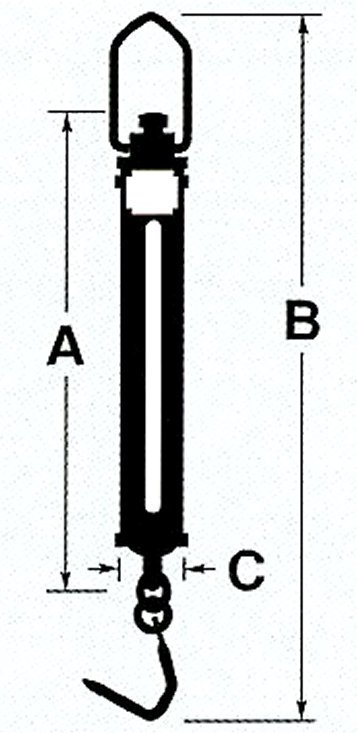

Dimensions:
|
All models except
T-50 |
Model T-50 |
| A |
7.3" (
184 mm ) |
8.1" (
205 mm ) |
| B |
9.8" (
250 mm ) |
16.3" ( 305 mm
) |
| C |
0.9" (
22 mm ) |
1.3"
( 32 mm ) |
Features:
- Lightweight, rust-resistant
- Chrome plated top handle and bottom
"S-hook"
- Accurate to within +/- 1 graduation
- Zero adjustment/tare knob
easy-to-use
- Handy, portable and low cost
Price:
$ 45.00 (any size)
Shipping weight: 1 lb (all models except T-50 which is 2
lb)
|
|
 |
The Super Samson\99 Hanging Scale
Model 25KG/55LB - Dual Marked: oz / g
Capacity: 25 kg / 55 lb
Increments: 200g / 8 oz
Features:
- Overload protection and a built-in
tare mechanism.
- Easy-to-use zero/tare adjustment.
- High contrast black and white
markings easy to read.
- Rugged polymer, tubular
construction - rust and dent resistant.
- Good for Sport and Recreational
Fishing.
- Includes top and bottom "S" hooks.
-
Overall length at zero load
(including "S" hooks): 11.5" (292mm)
-
Scale body length: 8" (203mm)
-
Extended length
(including "S" hooks): 16" (406mm)
Price:
$ 45.00 ea (brand new; individually boxed)
|
|
 |
The Little Samson\99 Hanging Scale
Model 7 lb Capacity: 7 lb
Increments: 2 oz
Features:
- High contrast black and white
markings easy to read (on front and back).
- Rugged polymer, tubular
construction - rust and dent resistant.
- Good for Recreational Fishing.
- Includes top loop and bottom
"S-hook".
-
Overall length at zero load
(including hooks): 5.75" (146mm)
-
Scale body length: 3.25" (83mm)
-
Extended length
(including hooks): 7.5" (191mm)
Price:
$ 12.00 ea (brand new; individually boxed)
|
|
< IN-Series brochure > |
The IN-Series Brass
Tubular Scale When
you demand nothing but the best! Chatillon fish & game scales are
the professional's choice due to their hand-crafted workmanship.
These IGFA certifiable scales are
perfect for fresh water and salt water use. Scales feature a
non-corrosive brass construction with deeply embossed graduations
for easy reading. Weights shown in avoirdupois and metric
measurements. Ideal for setting drags on fishing reels, or triggers
on firearms. The maximum reading pointer records the weight of your
catch and even provides visual proof for the "one that got away!"
Also useful as force gauge.
|
Model
|
Capacity
|
Standard Accessory |
Price * |
|
IN-002M
|
2 lb x 1/2 oz
|
1 kg x 20 g
|
- - |
$ 85.00 |
|
IN-004M
|
4 lb x 1 oz
|
2 kg x 50 g
|
- - |
$ 85.00 |
|
IN-006M
|
6 lb x 1 oz
|
3 kg x 25 g
|
- - |
$ 85.00 |
|
IN-010M
|
10 lb x 4 oz
|
5 kg x 100 g
|
- - |
$ 85.00 |
|
IN-012M
|
12 lb x 2 oz
|
6 kg x 50 g
|
- - |
$ 85.00 |
|
IN-015M
|
15 lb x 4 oz
|
7.5 kg x 100 g
|
- - |
$ 85.00 |
|
IN-025M
|
25 lb x 4 oz
|
12.5 kg x 100 g
|
- - |
$ 85.00 |
|
IN-030M
|
30 lb x 8 oz
|
15 kg x 250 g
|
- - |
$ 85.00 |
|
IN-050M
|
50 lb x 8 oz
|
25 kg x 250 g
|
- - |
$ 85.00 |
|
IN-060M
|
60 lb x 8 oz
|
-
|
Includes Heavy Duty
Handle (HD) |
$ 145.00 |
|
IN-100M
|
100 lb x 1 lb
|
50 kg x 50 g
|
Includes Heavy Duty
Handle (HD) |
$ 145.00 |
|
NC002845 |
all |
all |
Optional Carry Case, soft sided |
$ 45.00 |
* If maximum pointer is
not required, do not add "M" at end of the model number and deduct
$ 15.00 from the above prices.
|
|
 |

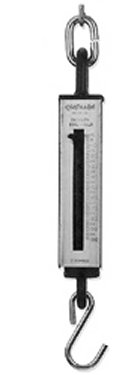

The Iron-Clad
Straight Scale
These rugged
scales are engineered for severe applications. Ideal for
construction sites or shipboard
applications, our Iron Clad scales feature an extra heavy duty steel and
cast iron construction. Scales
include a recessed pointer with deeply embossed numbers and graduations;
holding loop and hook
are chrome plated. Accurate to +/-1 graduation. Shipping weight 9
lbs (4 kg).
|
Model
|
Capacity x Resolution
|
Price |
|
IC-100
|
100 x 1 lb
|
$ 215.00 |
|
IC-200
|
200 x 2 lb
|
$ 215.00 |
|
IC-300
|
300 x 5 lb
|
$ 215.00 |
|
IC-500
|
500 x 5 lb
|
$ 235.00 |
<
Iron-Clad brochure > |
| |
|
| |
|
